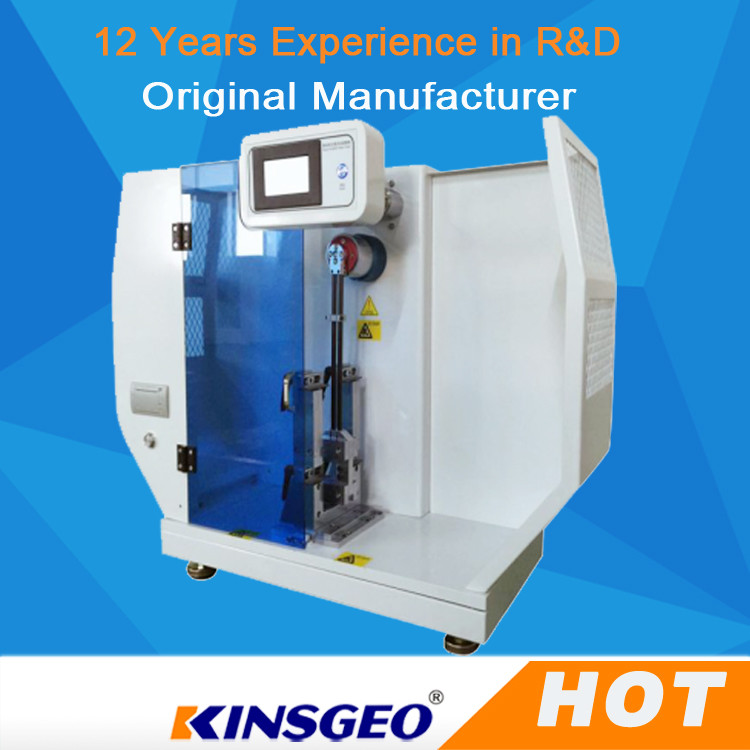

560* 300* 840mm 150 Degree Electronic LCD Touch Izod Impact Testing Machine for Plastic

Name: 560 300 840mm 150 Degree Electronic LCD Touch Izod Impact Testing Machine for Plastic
Brand: KEJIAN
Price: 1 USD

Buy cheap 560* 300* 840mm 150 Degree Electronic LCD Touch Izod Impact Testing Machine for Plastic product

Brand Name : KEJIAN

Model Number : KJ-3090

Certification : ISO,CE and etc

Place of Origin : Dongguan China

MOQ : 1 set

Price : Negotiate

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability : 200 sets per month

Delivery Time : In stock,3-7 working days after order confirmed

Packaging Details : Each set protected with resin fiber and PP film, then put into Professional Export Strong wooden case

Temperature : (15-35)℃

Impact speed : 3.5m/s

Impact energy : 1J,2.75J,5.5J,11J,22J

Bob angle : 150°±1°

Impact center distance : 335mm

Impact blade fillet radius : 0.8±0.5mm

Distance from impact blade to jaw : 22±0.2mm

Weight : 80KG

Outside size : 560* 300* 840mm

Contact Now

**560* 300* 840mm 150 Degree Electronic LCD Touch Izod Impact Testing Machine for Plastic**

Uses:

This machine is used for testing the impact strength of engineering plastic, FRP, ceramic, cast stone, plastic electrical appliance, insulation material, plastic pipe etc.

The pendulum arm used in the instrument is a kind of new material stronger than steel and lighter than aluminum (patent pending).

Characteristics:

English characters LCD shows the results, the storage of test results, and has the energy loss to be automatic correction function. Simple structure, convenient operation, data accurate and reliable.

Designing standard:

GB/T1843, ISO179---92, ISO180, GB/T21189, GB/T2611, JB/T8761

Specification

Mode:	KJ-XB5.5	KJ-XB22
Impact speed:	3.5m/s
Pendulum energy:	1.0J,2.75J,5.5 J	11J 22J
Pendulum angle:	150degree
Impact center distance:	335mm
Accuracy:	±0.1%
Resolution:	1%
Distance between impact blade and clamp mouth	22.0mm±0.2mm
Blade fillet radius	R=0.8mm±0.2mm
Energy loss:	1.0J—2%;2.75J—1%;5.5J—0.5%	11J,22J—0.5%
Specimen type:	Best type of specimen is 1 type.
Need the space:	Front and back 0.4m,left and right 1.5m,head 1.5m
Power:	(220-15%~220+10%)VAC 50HZ 0.1KW

Digital izod impact testing equipment standard configuration

Item	Name	Quantity	Unit	Remark
Host	Impact testing machine	1	set
Attached	1J ballistic pendulum	1	set
	2.75J impact weight	1	couple
	5.5J impact weight	1	couple
	model	1	piece
	wrenth	1	set

560* 300* 840mm 150 Degree Electronic LCD Touch Izod Impact Testing Machine for Plastic

IZOD Impact Tester
