Automatic Vertical Tensile Electronic Peel Adhesion Test Equipment With Single Column Tester
Design standard:
ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7
Uses:
This machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.
Character:
1 That Using the computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
2 Have steady performace, high accuracy, powerful software function and easy operation.
3 Use the USA high-precision load cell.
Specifications:
| Capacity choice | 1,2,5,10,20,50,100,200,500kg optional |
| Stroke | 650mm(excluding clamp) |
| Range of speed | 50~500mm/min |
| Effective testing space | 1200mmMAX |
| Accuracy | ±0.5% |
| Operation method | Windows operation |
| Motor | AC motor |
| Accessories | computer, printer, system operation manual |
| Optional accessories | stretcher, air clamp |
| Resolution | 1/150,000 |
| Weight | 70kg |
| Dimention | (W×D×H)58×58×125cm |
| Power | AC220V, 50/60Hz |
Safety Device:
Stroke protection:Upper and lower protection, prevent over preset
Force protection:system setting
Emergency stop device:Handling emergencies.
Software functions:
1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
7.With many units of measurement, the metric system and british system can switch;
8.Have automatic calibration function;
9.Have user-defined test method function
10.Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;
Details:
KeJian Instrument Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Onsite Service:
1.Device installation 2.Equipment Operation Test Technology training 3. Equipment Calibration 4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories 24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service
Product Tags:
|
|

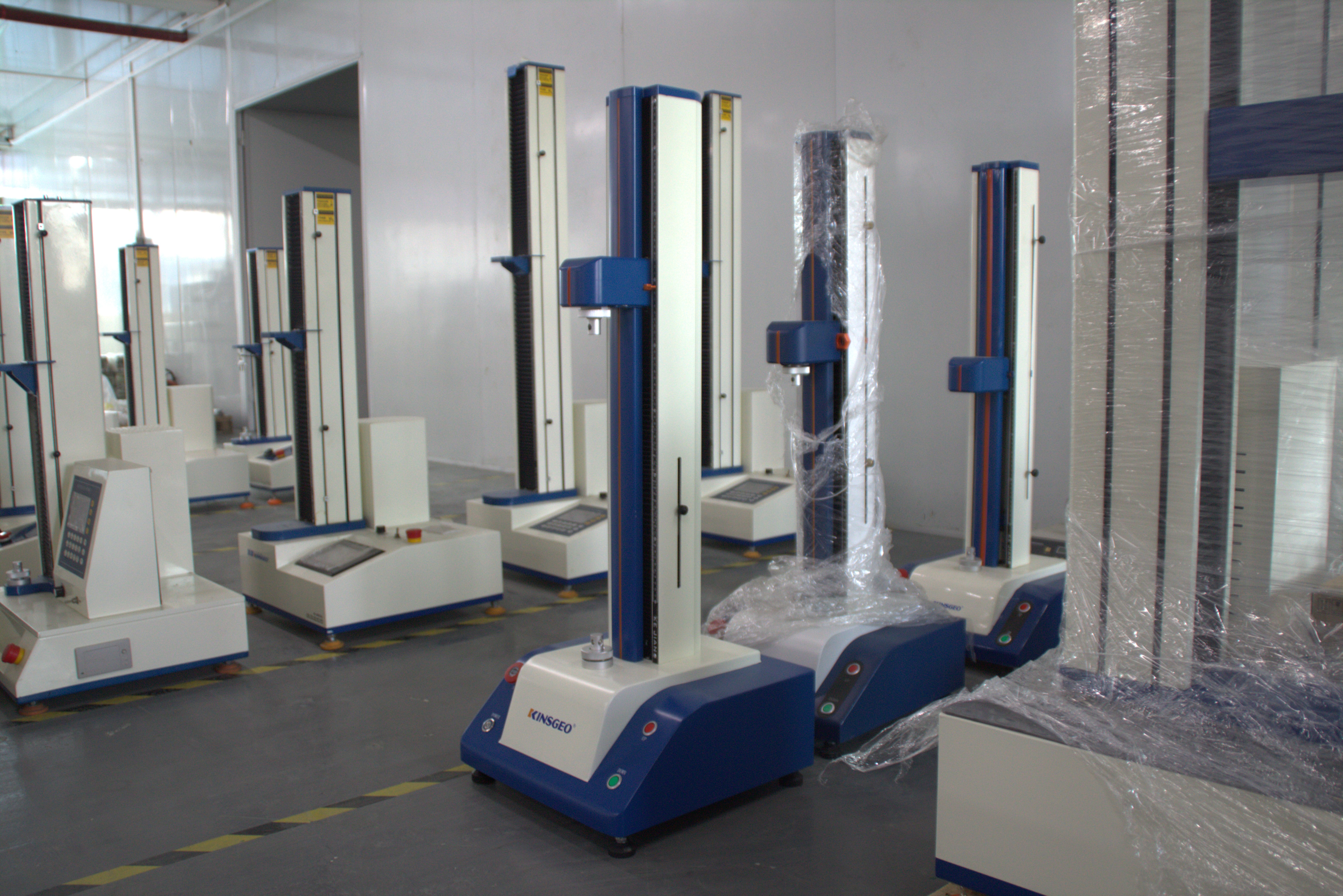

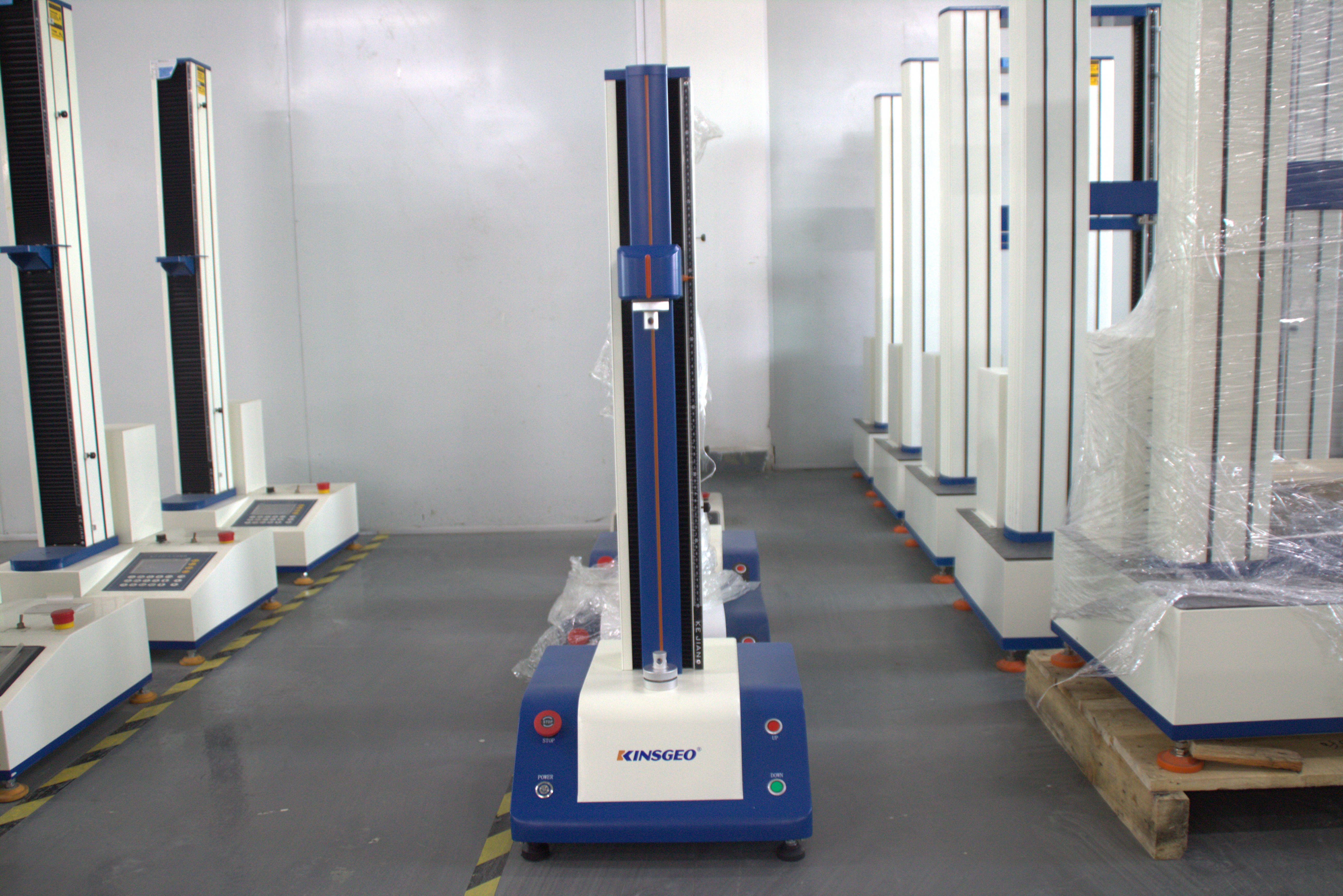

70kg Vertical Tensile Electronic Peel Adhesion Test Equipment Single Column ASTM D903 Images
|
